Lab 7: Kalman Filter

Step Response

I drove the robot at constant PWM of 150 toward a wall while logging ToF distance. The robot logs for up to 5 seconds with a safety stop if it gets too close.

void run_step_response() {
    unsigned long now = millis();
    if ((now - step_start_time) > 5000) {
        step_running = false;
        stop_motors();
        return;
    }
    if (tof_sensor.checkForDataReady()) {
        float dist = tof_sensor.getDistance();
        tof_sensor.clearInterrupt();
        tof_sensor.stopRanging();
        tof_sensor.startRanging();
        if (dist < 150) { step_running = false; stop_motors(); return; }
        if (data_count < MAX_DATA_POINTS) {
            log_time[data_count] = now - step_start_time;
            log_tof[data_count]  = dist;
            log_pwm[data_count]  = step_pwm_value;
            data_count++;
        }
    }
    drive_straight(step_pwm_value);
}

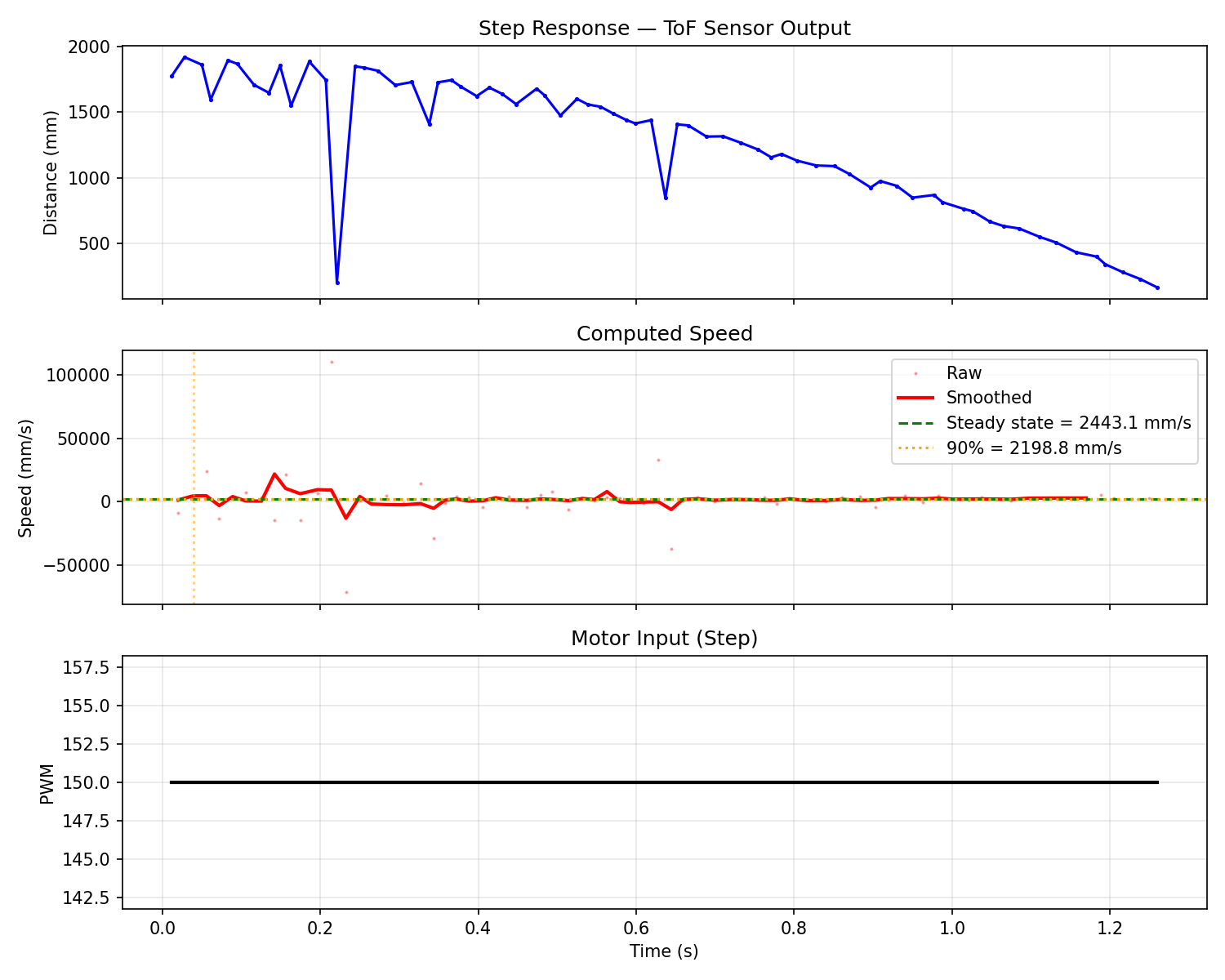

Figure: Step response. Top: ToF distance. Middle: computed speed (raw + smoothed). Bottom: motor input at constant 150 PWM.

velocity = -np.diff(tof) / np.diff(times_s)
steady_state_speed = np.mean(vel_smooth[-n_last:])
d = 1.0 / steady_state_speed
m = -d * t_rise / np.log(1.0 - rise_fraction)

Matrices and Noise

The state is [position, velocity]. The physics model comes from F = u - d*v. C is [-1, 0] because the ToF reads positive distance but position decreases as the robot goes toward the wall. Discretized with Ad = I + dt*A and Bd = dt*B.

A = np.array([[0, 1], [0, -d/m]])
B = np.array([[0], [1/m]])
C = np.array([[-1, 0]])
Ad = np.eye(2) + Delta_T * A
Bd = Delta_T * B

Sensor noise is sigma_z = 20mm from the ToF datasheet; process noise started at sigma_1 = sigma_2 = 10. Bigger process noise means less trust in the model, bigger sensor noise means less trust in the ToF. Initialized state with first ToF reading and zero vel.

Sigma_u = np.array([[10**2, 0], [0, 10**2]])
Sigma_z = np.array([[20**2]])
x = np.array([[-TOF[0]], [0]])
sigma = np.array([[100, 0], [0, 100]])

Running the Filter

I ran the KF function from the lecture slides on my Lab 5 data to check it before putting it on the robot; the input gets normalized by dividing PWM by the step size.

def kf(mu, sigma, u, y):
    mu_p = Ad.dot(mu) + Bd.dot(u)
    sigma_p = Ad.dot(sigma.dot(Ad.T)) + Sigma_u
    sigma_m = C.dot(sigma_p.dot(C.T)) + Sigma_z
    kkf_gain = sigma_p.dot(C.T.dot(np.linalg.inv(sigma_m)))
    y_m = y - C.dot(mu_p)
    mu = mu_p + kkf_gain.dot(y_m)
    sigma = (np.eye(2) - kkf_gain.dot(C)).dot(sigma_p)
    return mu, sigma

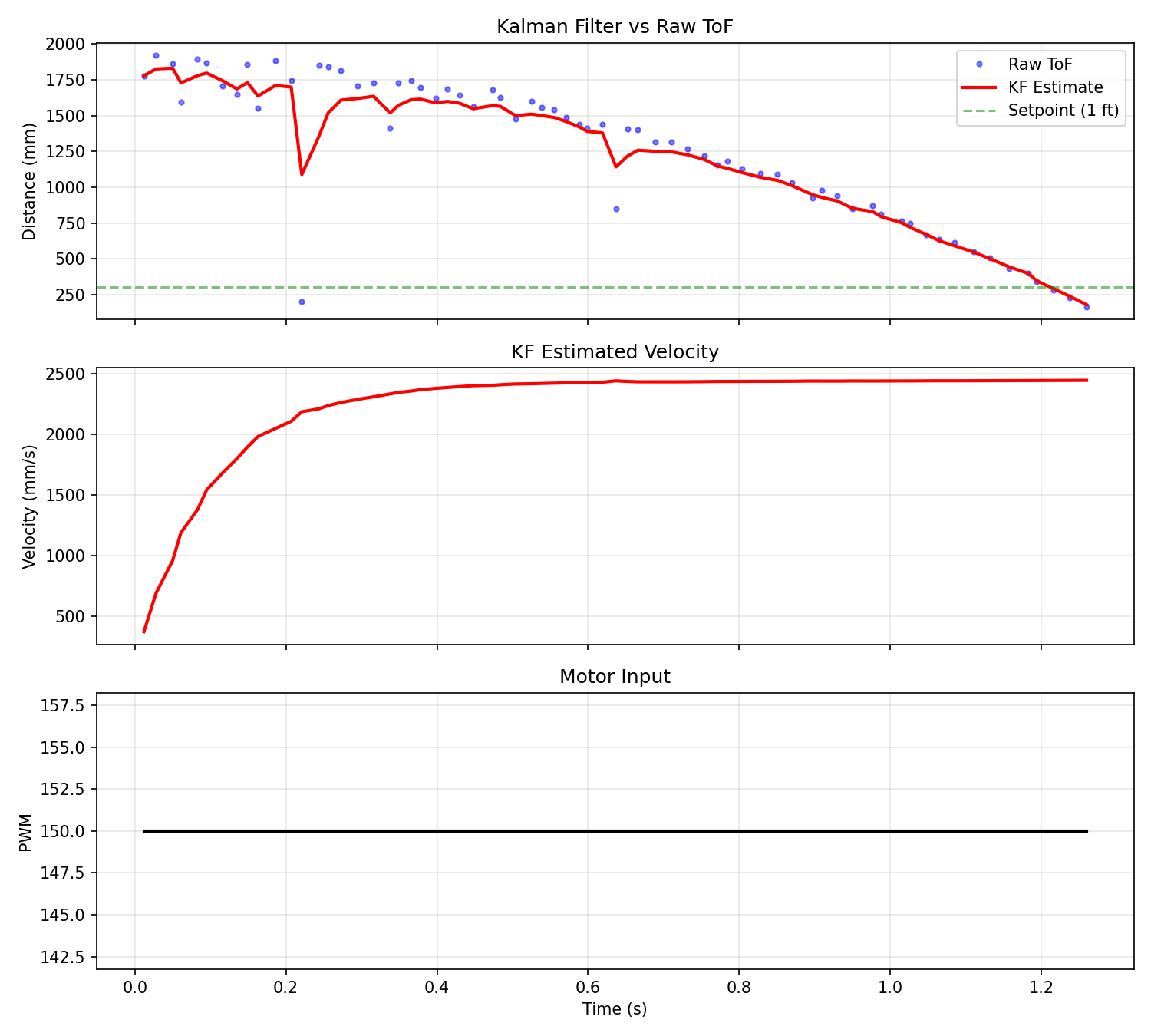

Figure: KF estimate (red) vs raw ToF (blue dots) on Lab 5 data.

Tuning Sigmas

I tried four sigma combos. Small process noise (5,5) trusts the model more so the line is smoother but slower to react. Large process noise (50,50) basically passes the raw data through. Small sensor noise (sigma_z=5) snaps to every reading. Balanced (10,10,20) gave the best tradeoff so I went with that.

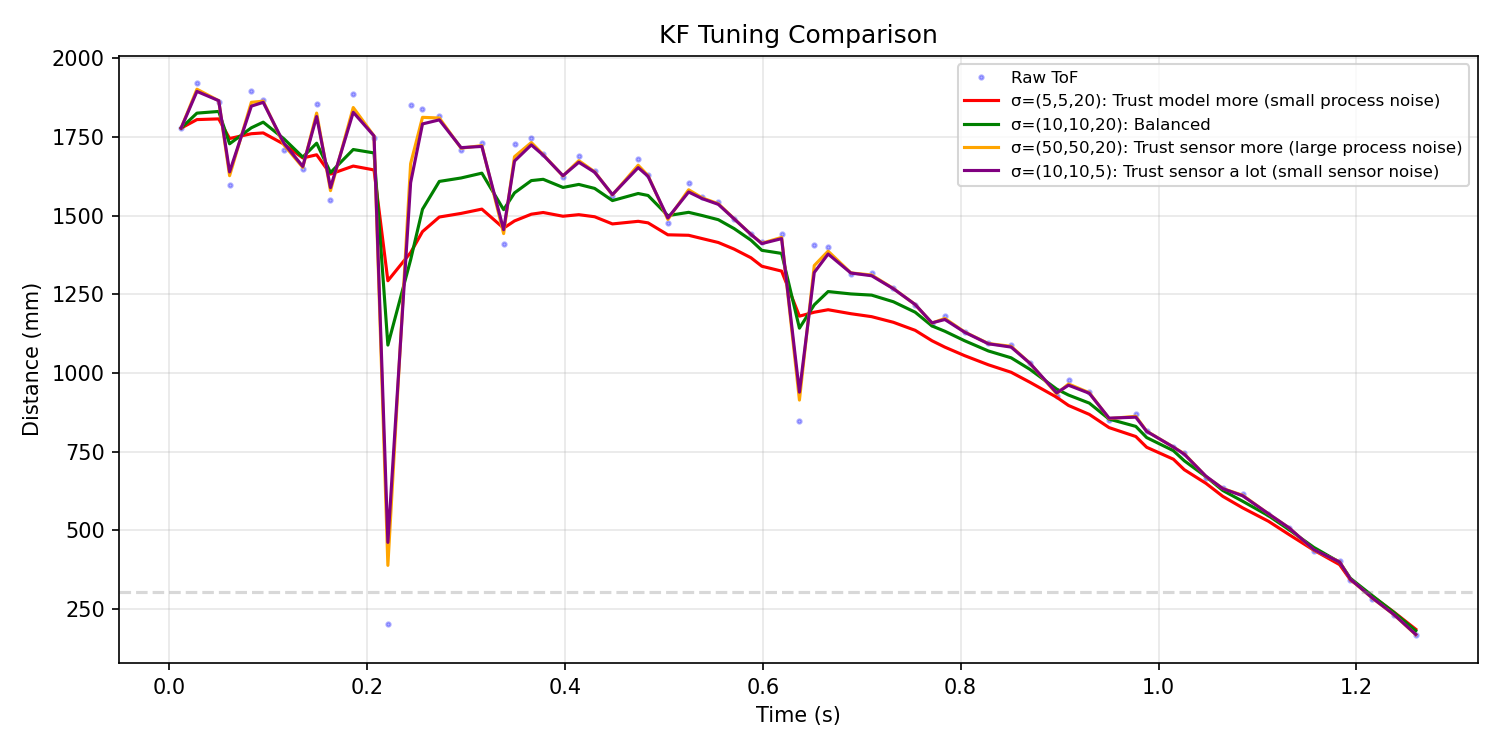

Figure: Four sigma configurations compared. Green (balanced) was chosen.

Implementation

The KF was added to my Lab 5 PID code using the BasicLinearAlgebra library. Predict runs every loop iteration (~1ms) but update only fires when the ToF has a new reading (~50-100ms); between readings the robot runs on the model alone. Which notably is the whole point of doing this.

void kf_predict(float u_normalized) {
    Matrix<1,1> u_mat = { u_normalized };
    mu = Ad * mu + Bd * u_mat;
    Sigma_state = Ad * Sigma_state * ~Ad + Sigma_u;
}

void kf_update(float tof_reading) {
    Matrix<1,1> y_mat = { tof_reading };
    Matrix<1,1> y_m = y_mat - C_mat * mu;
    Matrix<1,1> S = C_mat * Sigma_state * ~C_mat + Sigma_z_mat;
    Matrix<1,1> S_inv = { 1.0 / S(0,0) };
    Matrix<2,1> K = Sigma_state * ~C_mat * S_inv;
    mu = mu + K * y_m;
    Sigma_state = (I2 - K * C_mat) * Sigma_state;
}

Ad and Bd get recomputed each loop with actual dt so timing jitter doesn't mess things up. PID reads KF estimated distance instead of waiting for the next ToF reading.

// In main loop:
Ad(0,1) = dt_actual;
Ad(1,1) = 1.0 - dt_actual * kf_drag / kf_momentum;
Bd(1,0) = dt_actual / kf_momentum;

kf_predict(motor_pwm / kf_step_size);
if (tof_sensor.checkForDataReady()) {
    kf_update(tof_sensor.getDistance());
}
kf_distance = -mu(0,0);
motor_pwm = compute_pid(kf_distance);

Verification

I ran the KF at Lab 5 speed first to make sure it was working. The plot shows the KF line is smooth and continuous while the ToF dots are sparse. The filter fills in gaps between sensor readings correctly.

Stopping at 1 Foot

Video: Robot stopping 1ft from wall using KF + PID.

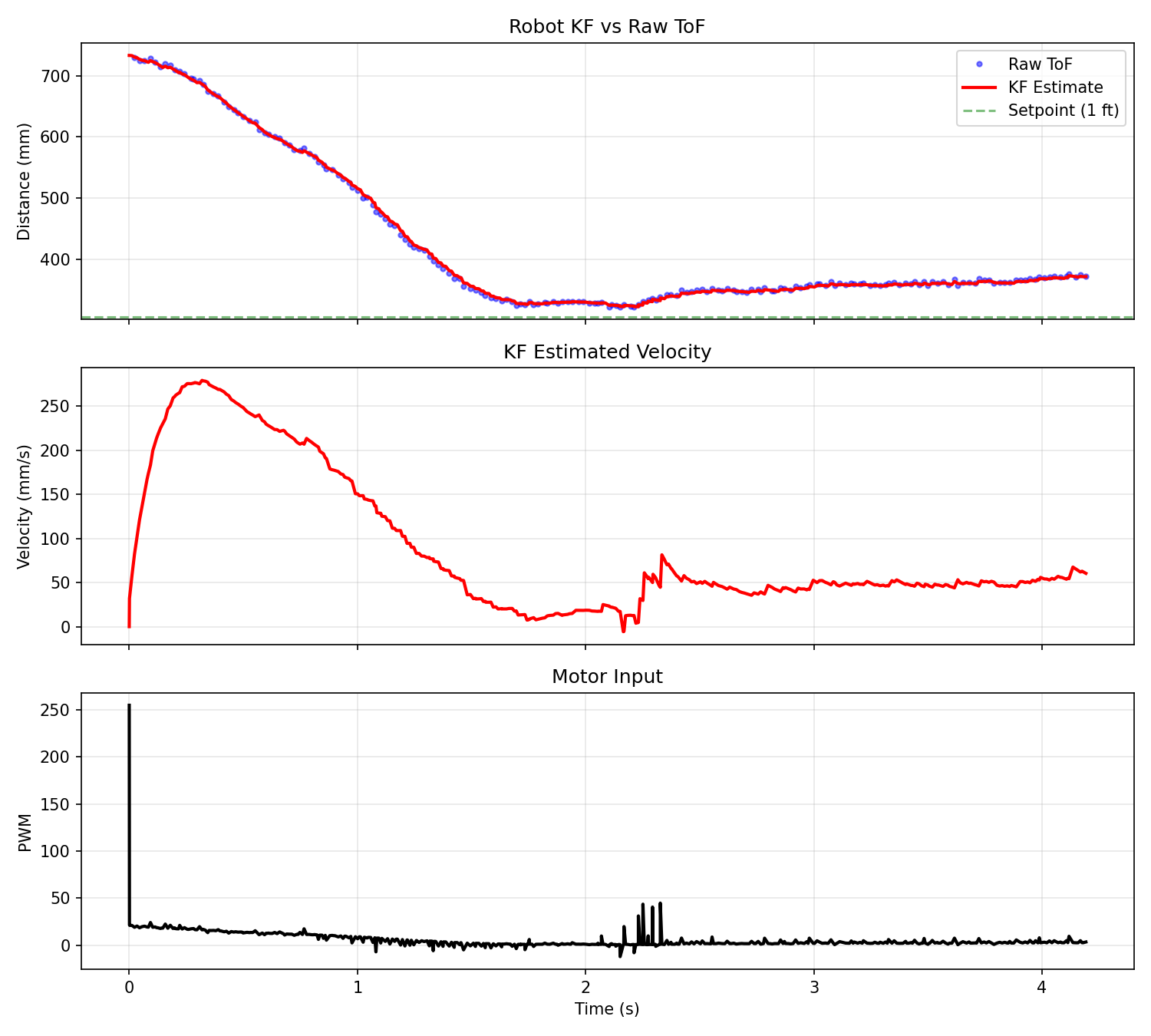

Figure: Final run showing ToF, KF distance, KF velocity, and PWM. Note the Raw ToF (blue) vs KF estimate (red) running on the Artemis.
